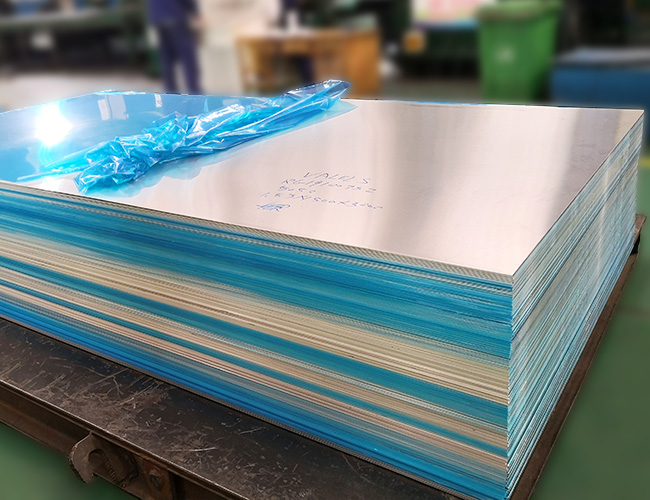

1050 aluminum sheet

Price：Negotiable

Contact Supplier：

Product Detail

1050 Aluminum Sheet manufacturer haomei aluminium Professional to provide 1050 h14 aluminum sheet,1050 h24 aluminum sheet,EN AW-1050A Price

1050 aluminium sheet belongs to commercially pure wrought family with a purity of 99.5% Aluminium. Except Al, 0.4% of Fe is added to 1050 aluminium sheet, thus, it has high electrical conductivity. 1000 series aluminium group offers the best correction resistance compared to any alloy group, so does the 1050 aluminium sheet.

Aluminium alloy 1050 is a popular grade of aluminium for general sheet metal work where moderate strength is required.Aluminium alloy 1050 is known for its excellent corrosion resistance, high ductility and highly reflective finish.

Weldability

When welding 1050 to itself or an alloy from the same subgroup the recommended filler wire is 1100. For welding to alloys 5083 and 5086 or alloys from the 7XXX series, the recommend wire is 5356. For other alloys use 4043 filler wire.

1050 Aluminium sheet Fabrication

Workability – Cold: Excellent
Machinability: Poor
Weldability – Gas: Excellent
Weldability – Arc: Excellent
Weldability – Resistance: Excellent
Brazability: Excellent
Solderability: Excellent

1050 Aluminium sheet Chemical Composition and Mechanical Properties

Elements	Si	Fe	Cu	Mn	Mg	Cr	Zn		Ti	Others		Al
Content	0.25	0.40	0.05	0.05	0.05	-	0.07		0.05	0.15		Remain
Alloy Temper	Specified				Tensile strength			Yield strength			Elongation
	Thickness(mm)				(MPa)			(MPa)			(%)
1050-O/ 1050-H111	0.2-0.5				65-95			Min20			Min20
	0.5-1.5										Min22
	1.5-3.0										Min26
	3.0-6.0										Min29
	6.0-12.5										Min35
	12.5-80.0
1050-H112	6.0-12.5				Min75			Min30			Min20
	12.5-80.0				Min70			Min25
1050-H12	0.2-0.5				85-125			Min65			Min2
	0.5-1.5										Min4
	1.5-3.0										Min5
	3.0-6.0										Min7
	6.0-12.5										Min9
	12.5-40.0
1050-H14	0.2-1.5				105-145			Min85			Min2
	1.5-3.0										Min4
	3.0-6.0										Min5
	6.0-12.5										Min6
	12.5-25
1050-H16	0.2-0.5				120-160			Min100			Min1
	0.5-1.5										Min2
	1.5-4.0										Min3
1050-H18	0.2-0.5				Min135			Min120			Min1
	0.5-1.5				Min140						Min2
	1.5-3.0										Min2
1050-H19	0.2-0.5				Min155			Min140			Min1
	0.5-1.5				Min150			Min130
	1.5-3.0
1050-H22	0.2-0.5				85-125			Min55			Min4
	0.5-1.5										Min5
	1.5-3.0										Min6
	3.0-6.0										Min11
	6.0-12.5										Min12
1050-H24	0.2-0.5				105-145			Min75			Min3
	0.5-1.5										Min4
	1.5-3.0										Min5
	3.0-6.0										Min8
	6.0-12.5
1050-H26	0.2-0.5				120-160			Min90			Min2
	0.5-1.5										Min3
	1.5-4.0										Min4
1050-H28	0.2-0.5				Min140			Min110			Min2
	0.5-1.5
	1.5-3.0										Min3

EN AW-1050A ALUMINIUM PROPERTIES

		Thermal conductivity	Coefficient of thermal expansion	Melting point		Elastic modulus	Electrical conductivity
Alloy	Temper	W/m*K	µm/(m*K)	Min	Max	KN/mm2	%IACS
EN AW-1050A	Hx2	229,0	23,5	645	658	69	59,5
EN AW-1050A	Hx4	229,0	23,5	645	658	69	59,5
EN AW-1050A	Hx6	229,0	23,5	645	658	69	59,5
EN AW-1050A	Hx8	229,0	23,5	645	658	69	59,5
EN AW-1050A	Hx9	229,0	23,5	645	658	69	59,5
EN AW-1050A	O	229,0	23,5	645	658	69	59,5

EN AW-1050A MECHANICAL PROPERTIES (EN 485-2:2008)

		Thickness interval		Tensile strength (Rm) MPa		Proof stress (Rp0,2)	Elongation A50mm	Elongation	Bend radius 180*	Bend radius 90*	Brinell Hardness
Alloy	Temper	Min	Max	Min	Max	MPa	% min	% min	t	t	HBS
EN AW-1050A	H111	0.2	0.5	65	95	20	20	-	0,00	0,00	20
EN AW-1050A	H111	0.5	1.5	65	95	20	22	-	0,00	0,00	20
EN AW-1050A	H111	1.5	3	65	95	20	26	-	0,00	0,00	20
EN AW-1050A	H111	3	6	65	95	20	29	-	0,50	0,50	20
EN AW-1050A	H111	6	12.5	65	95	20	35	-	1,00	1,00	20
EN AW-1050A	H111	12.5	80	65	95	20	-	32	-	-	20

For its content above in the chart, 1050 aluminium sheet has high ductility and high reflective finish. Besides, 1050 aluminum sheet is non-heat treatment series is produced in extruded sections. It has excellent cold workability, braze-ability and solder-ability, and it is strengthened by cold working. However, 1050 aluminium sheet has low mechanical strength compared to more significantly alloyed metals. All of these characteristics make 1050 aluminium sheet well suited to chemical and electrolytic brightening but not in casting. Last but not least, moderate strength and good anodizing quality enables our products has a vast application.
