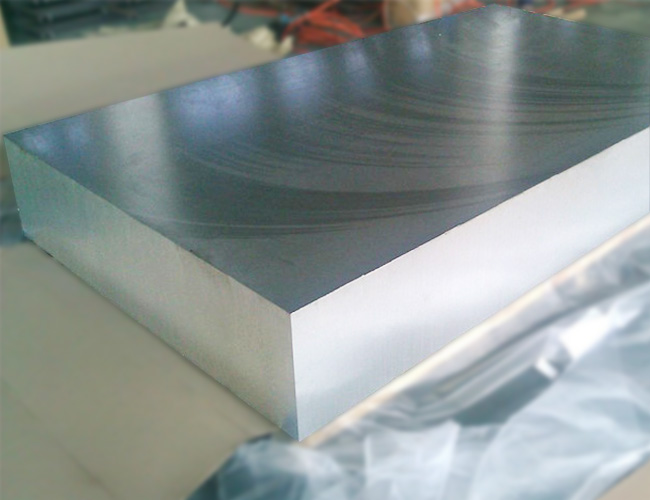

1060 Aluminum sheet

  • Price:Negotiable
Contact Supplier:

Product Detail

    1060 aluminum sheet is pretty similar to 1050 aluminum alloy with more than 0.1% of aluminum by weight. Both 1050 and 1060 aluminium sheet of Huawei AL, lives up to ISO standards, but they cover different ASTM standards. 1060 aluminium sheet contains 0.05% cooper, thus, its conductivity is 55%. Besides, 1060 aluminium sheet is relatively low strength, essentially pure aluminium alloy with many different tempers, such as O (annealed), H12, H14, H16, H18, etc. what’s more, other aluminium sheet belonging to commercial pure wrought family are available, including 1050, 1070, 1100 and so on and so forth.

    1060 aluminum sheet is noted for its excellent welding characteristics and formability by cold or hot working with commercial techniques. It cannot be hardened by heat treatment but only from cold working. Tempers H12, H14, H16 and H18 are determined by the amount of cold working imparted into the alloy. Moreover, 1060 aluminium sheet has good corrosion resistance as well as poor machine-ability, and its machine-ability can be improved in harder (cold working) tempers, such as H16 and H18. For its features above, 1060 aluminum sheet has a vast application, such as electric and chemical equipment, railroad tank cars, etc.

    1060 aluminum sheet Have good elongation and tensile strength, can satisfy completely the requirements of conventional processing (stamping, stretch) high formability. For industrial pure aluminium, high plasticity, corrosion resistance, electrical conductivity and thermal conductivity, but strength is low, heat treatment can not be improved machinability is bad; Gas welding, hydrogen welding and resistance welding, is not easy to brazing; Under various pressure processing and extension, bending.

    1060 Aluminum sheet Chemical Composition and Mechanical Properties

    Elements Si Fe Cu Mn Mg Cr Zn Ti Others Al
    Content (max) 0.25 0.35 0.05 0.03 0.03 - 0.05 0.03 0.15 Remain
    Alloy Temper Specified Tensile
    strength
    Yield
    strength
    Elongation
    Thickness(in.) (ksi) (ksi) (%)
    1060-O(annealed) 0.006-0.019 8.0-14.0 2.5 Min15
    0.020-0.050 Min22
    0.051-3.000 Min25
    1060-H12/1060-H22 0.017-0.050 11.0-16.0 9.0 Min6
    0.051-2.000 Min12
    1060-H14/1060-H24 0.006-0.019 12.0-17.0 10.0 Min1
    0.020-0.050 Min5
    0.051-1.000 Min10
    1060-H16/1060-H26 0.006-0.019 14.0-19.0 11.0 Min1
    0.020-0.050 Min4
    0.051-0.162 Min5
    1060-H18/1060-H28 0.006-0.019 Min16.0 Min12.0 Min1
    0.020-0.050 Min3
    0.051-0.128 Min4
    1060-H112 0.250-0.499 Min11.0 Min7.0 Min10
    0.500-1.000 Min10.0 Min5.0 Min20
    1.001-3.000 Min9.0 Min4.0 Min25


    1060 Aluminum sheet Packing

    Packing Details : Standard export package.
    Aluminium Sheet of packaging meet the export standard. Plastic film and brown paper can be covered at customers’ need. wooden case or wooden pallet is adopted to protect products from damage during the delivery.
